ND40 Globe Valves

Service Image

ND40 Globe Valves

Globe valves are one of the most reliable and widely used valve types for throttling and regulating flow in pipelines. Their design is fundamentally different from gate or ball valves, which are primarily intended for isolation (fully open or fully closed service). In a globe valve, the disc moves perpendicular to the flow, which creates a gradual change in flow area as the valve opens or closes. This makes them ideal anywhere precise control, stable operation, or controlled pressure drop is needed.

Globe valves are especially suited for systems where flow rate must be adjusted frequently, where sudden surges could damage downstream equipment, or where tight shut-off is required even after repeated operation. They offer better flow control accuracy than most other valve types, which is why they are commonly found in control stations, dosing lines, and recirculation systems.

At Exceed, we design our globe valves to maximize these inherent strengths. Every valve is built with precision-machined internals for smooth throttling, high-integrity sealing surfaces for reliable shut-off, and rugged construction to withstand demanding operating conditions. This ensures our valves deliver long-term, consistent performance while reducing the total cost of ownership for your plant.



Standards:

Manufacturing Std.: BS 1873

Testing & Inspection Std.: API 598

Face to Face: BS EN 558

Flange DImensions:BS EN 1092-1 PN40 /



Engineering Options:

  • Electric Actuation: Multi-turn electic actuator for remote or automated operation.
  • Bypass Arrangement: Bypass connection for pressure equilization and easier valve operation.
  • Extended Spindle: Extended stem/spindle arrangement for applications requiring remote operation or insulation clearance.
  • Stellite Hardfacing: Stellite overlay on seating surfaces for improved resistance to erosion, wear & high-temperature service.

Globe valves control the flow of fluids by using a movable disc and a stationary ring seat inside a spherical body. When the handwheel or actuator is turned, the stem moves the disc vertically towards or away from the seat.

As the disc approaches the seat, the flow area narrows, which increases resistance and reduces flow. This linear flow characteristic allows operators to make small, precise adjustments to the flow rate.

Key design aspects that make globe valves suitable for control:

  • Shorter travel between open and closed positions — allows quicker response.

  • Well-guided disc and stem — prevents vibration and ensures smooth movement.

  • Flow path changes direction inside the body — increases pressure drop, which actually helps in throttling and pressure control.

  • Available in different seat and disc designs (plug type, needle type, parabolic) to suit various control needs.

Because of this design, globe valves are ideal anywhere gradual, accurate flow control is needed instead of just fully open/closed operation.

  • Steam and condensate lines – Allow controlled opening to prevent water hammer and thermal shock.

  • Cooling and heating loops – Help balance flow for precise temperature control across multiple branches.

  • Dosing or fuel lines – Provide accurate control where small changes in flow can affect the process outcome.

  • Pump bypass lines – Maintain a minimum flow to protect pumps from running dry or overheating.

  • Control stations – Gradually reduce pressure to protect downstream equipment from sudden surges.

  • Excellent Throttling Capability
    Globe valves allow fine flow regulation.
    Exceed uses precision-machined seating surfaces to keep throttling consistent over long-term use.

  • Tight Shut-Off
    The disc presses squarely onto the seat to block flow completely.
    Exceed ensures accurate alignment of the disc and seat for reliable sealing.

  • Durability in Demanding Conditions
    Globe valves can handle high pressure and temperature cycles.
    Exceed builds valves from certified materials and robust stem-disc designs to resist wear and thermal stress.

  • Ease of Operation
    Smooth stem threads and guided movement make globe valves easier to operate.
    Exceed optimizes stem design to lower operating torque and extend actuator life.

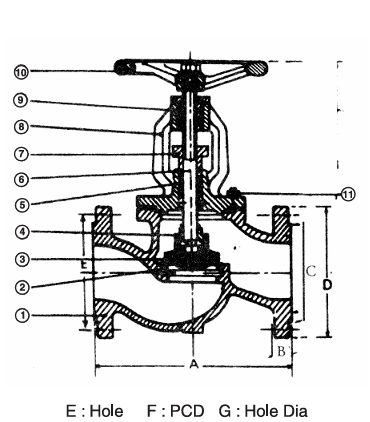

No Part Name Qty Materials
1 Body 1 ASTM A216 Gr. WCB
2 Bonnet 1 ASTM A216 Gr. WCB
3 Stem 1 ASTM A276 Type 410
4 Plug 1 ASTM A276 Type 410
5 Seat 1 ASTM A53 with SS410 (13% Cr) Overlay
6  Back Seat 1 ASTM A276 Type 410
7 Gland Packing Req. Graphite Rings
8 Gasket 1 Spiral Wound Gasket with SS304 Winding and Carbon Filler
9 Stud - Nuts Req. MS - MS / ASTM A193 Gr. B7 - ASTM A194 Gr. 2H
10 Gland Follower 1 ASTM A216 Gr. WCB
11 Handwheel 1 ASTM A536
12 Yoke 1 ASTM A536
Service Rating Test Pressure
Material Class Working Pressure @ 38°C Max Temp. Shell Test High Pressure Closure Test (Water) Low Pressure Closure Test (Air)
WCB

PN 40

40 bar

425°C

60 bar

44 bar

 7 bar

Important Notes:

1) Temprature shown is the maximum service temprature of the valve. The allowable working pressure decreases as temprature increases. Always refer to the ASME B16.34 pressure-temprature ratings for the exact value at the required temprature.

2) Hydrostatic test pressures are based on API 598 requirements:

  • Body (shell) test = 1.5 x rated working pressure
  • Seat (closure) test = 1.1 x rated working pressure
Size DN F to F ØD ØRF PCD ØM N T
BS EN 1092-1 PN40 ASME B16.5 Class 150 BS EN 1092-1 PN40 ASME B16.5 Class 150 BS EN 1092-1 PN40 ASME B16.5 Class 150
25 160.00 115.00 68.00 85.00 79.20 14.00 16.00 4 4 18.00
40 200.00 150.00 88.00 110.00 98.50 18.00 16.00 4 4 20.00
50 230.00 165.00 102.00 125.00 120.60 18.00 19.00 4 4 20.00
65 290.00 185.00 122.00 145.00 139.70 18.00 19.00 8 4 22.00
80 310.00 200.00 138.00 160.00 152.40 18.00 19.00 8 4 24.00
100 350.00 235.00 162.00 190.00 190.50 22.00 19.00 8 8 26.00
125 400.00 270.00 188.00 220.00 215.90 26.00 22.00 8 8 28.00
150 480.00 300.00 218.00 250.00 241.30 26.00 22.00 8 8 30.00
200 600.00 375.00 285.00 320.00 298.40 30.00 22.00 12 8 34.00

Flange dimensions (PCD, ØM and N) are available as per ASME B16.5 Class 150 or BS EN 1092-1 PN40, as specified by the customer.

(Dimensions above 200mm available on request)

All dimensions are in mm
